| Product Name: | Automation Lighting Controller | IO Control Ports: | 4pcs |
|---|---|---|---|
| RS-485 Ports: | 5pcs | Humidity: | 10% To 90% RH (non-condensing) |
| Temperature: | 32° To 104°F (0° To 40°C) | Color: | Customized |
| High Light: | led light control module,daytime running light control module |
||
Description of Automation Controller:
>Ethernet network communication ports support 8pcs TCP and 8pcs UDP ports connection to control third-party devices . Each TCP/UDP connection can be configured as sever or client way
>Use html web configuration programming method, the programming interface is stored in the host. You can make configuration programming to control the host by login in PC web browser. The entire programming process is simple and intuitive, which breaks the traditional written in the programming software programming language / graphical programming way, minimizes the programming capabilities of device use RS and ensures the flexibility of device applications.
>Ethernet network communication port provides an upward connection TCP/UDP port, which can connect the computer , central control system, compatible with AMX, Crestron, C4 and all third-party control system network connection.
Specifications of Automation Controller:
| Input voltage | DC24V |
| Digital Output | 250 mA sink from maximum 24 Volts DC, catch diodes for use with “real world” loads |
| Digital Input | Rated for 0-24 Volts DC, input impedance 20k ohms, logic threshold 1.25 Volts DC |
| CPU | 32-bit ARM Microprocessor |
| Size | 143*98*68mm |
Automation Controller Quick Details:

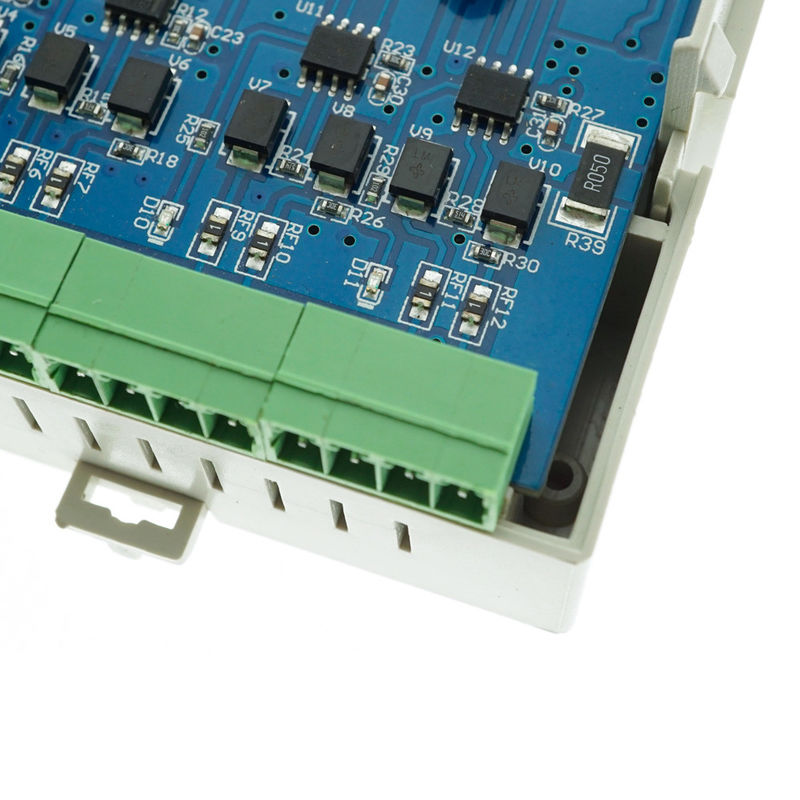

Light gray polycarbonate housing with polycarbonate label overlay, UL94 V-0 rated, 35mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45mm front panel cutout, occupies 8 DIN module spaces (143mm)
Automation Controller Specifications
| NET | (1) Yellow LED, Indicates communication with an external control processor |
| PWR | (1) Green LED, illuminates when DC power is applied to the NET port |
| BUTTON 1 – 6 | (8) miniature pushbuttons for local control of devices |
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
