| Working Voltage: | 24VDC±10% | Max Power Consumption: | 1.6w |
|---|---|---|---|
| Static Power Consumption: | 0.5W | Input Key: | 8 Keys |
| Appearance Color: | Champagne Gold, Other Colors Can Be Customized | LED Indicator: | 8 Key To Activate White LED Light |
| Key Type: | Reset Touch Button, With Vibration Effect | Backlight: | With Infrared Induction Backlight |
| Bus Interface: | 1× Bus | Address Setting: | 1 × Address Dial, Address 1-63 Can Be Set |
| Highlight: | 0.5W touch switch panel,24VDC smart control panel,8Key Smart Switch Panel |
||

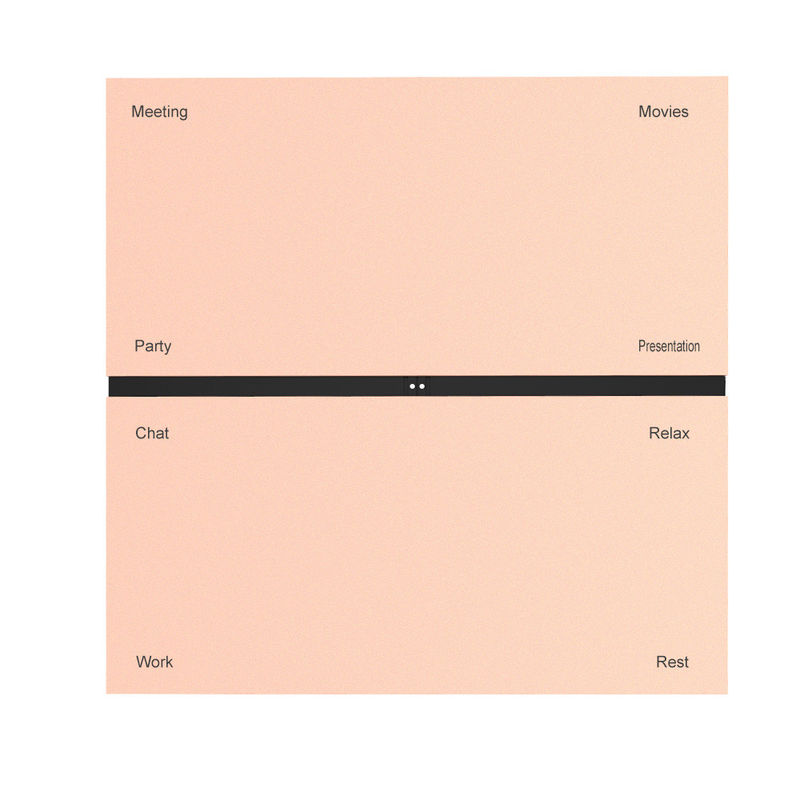

8-key Programmable Smart Switch Panel For LED Lights Home Automation
Description of Smart Switch Panel
installed with standard-86 bottom box, supports seamless connection, matched
with a variety of materials and colors panel, provides 8 keys each panel, Inductive backlight,
reset touch button, with vibration effect, mature structure, stable performance, adopts(aluminium alloy) oxidation process.
|
hole size of bottom box (length×width×depth) |
86mmx86mmx45mm |
|
Working temperature/humidity |
-0 -- 45℃/20% -- 93%RH |
|
storage temperature/humidity |
-40℃ -- 55℃/10% -- 93%RH |
| external size (length×width×height) | 86mm×86mm×42mm |
|
installation mode |
standard 86 bottom box installation |
|
weight |
126g/PCS |
Functional characteristics
Provides 8 programmable buttons, ICONS can be engraved or silk-screen printed;
■ can trigger short press, short press release, long press and long press release;
■ with inductive backlight;
■ with button vibration effect;
■ standard 86 box installation, supports multiple panels to connect seamlessly;
■ standard process, champagne gold, using (aluminum alloy) oxidation;
■ panel LED indicator will flash if bus abnormal ;
■ each button with LED indicator light;
■ supports online refresh program;
■ bus communication;
